VTAP Automatic Reader Setup

You can configure VTAP Readers directly from the PassEntry Dashboard. This setup process does not require access to a VTAP Cloud account and typically takes only a few minutes.

​

Step-by-Step Instructions

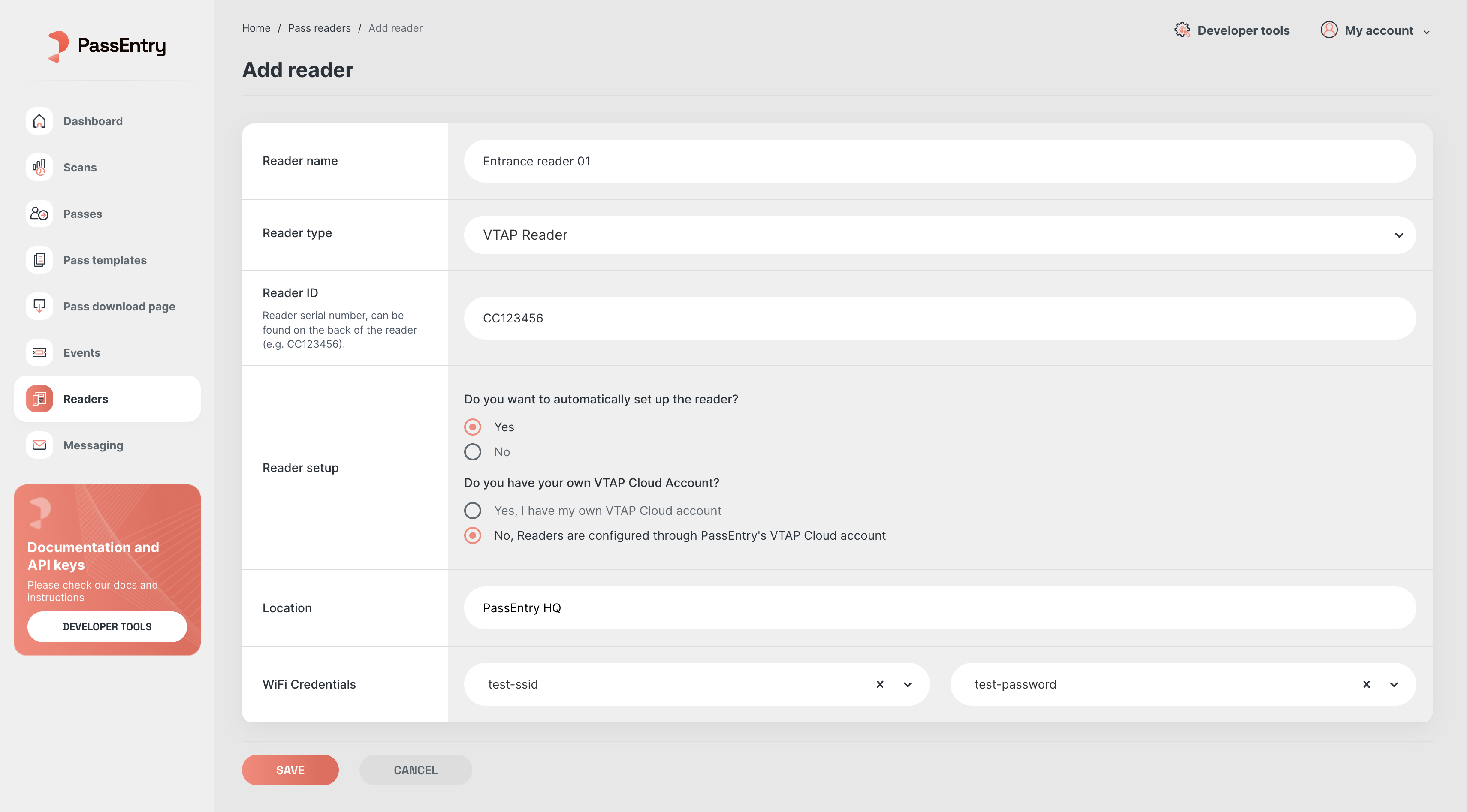

1. Navigate to Readers in the PassEntry Dashboard and click Add reader.

2. Fill in Reader Information

   • Reader name: Choose a name to identify the reader (e.g., Entrance reader 01).
   • Reader type: Select VTAP Reader from the dropdown.
   • Reader ID: Enter the reader’s serial number (printed on the back of the device, e.g., CC123456).

3. Select Reader Setup Options

   • For automatic configuration, choose Yes under Do you want to automatically set up the reader?
   • Under Do you have your own VTAP Cloud Account?, select:
     • No if using PassEntry’s VTAP Cloud account, or
     • Yes if you bought your readers independently and they are managed through your VTAP Cloud account.
   • VTAP Cloud Account: If using your own VTAP Cloud account, enter the API key (please contact VTAP support to get the API key).

4. Set Location and Network

   • Location: Provide a label for where the reader is physically located (e.g., PassEntry HQ).
   • WiFi Credentials: Enter the network SSID and password to connect the reader to WiFi.

5. Save Configuration. The reader will be automatically configured using the information provided.

​

After Setup

Once the reader is set up, you’ll see a “Completed” status in the Dashboard.

After setup, you can manage the following directly from the PassEntry Dashboard:

• Edit the reader’s name and location
• Update WiFi credentials
• Adjust validation settings

All configuration changes are automatically synced with the VTAP reader.
